Piping exhaust gas for machinery, equipment and automotive engineering

In machines, plants or vehicle technology, exhaust gas pipes are used in the engine and hydraulic system. They function, for example, as exhaust pipes, charge air pipes, cooling water pipes or hydraulic pipes. Pipes are manufactured in welded and bent form or in combination.

In addition to mechanical stress and leak tightness, exhaust pipes have to meet a wide range of requirements so that engine and hydraulic systems can operate trouble-free.

Piping exhaust gas for machinery, equipment and automotive engineering

Individual piping exhaust gas from NovaNox®.

With our many years of experience as a component and system supplier in pipe technology, we develop and produce individual piping for manufacturers of machines, plants and vehicle technology. We are able to produce the entire exhaust piping according to your specifications as a ready-to-install solution. Our products range from turbo flanges and rain flaps to complete exhaust systems. NovaNox® exhaust piping is bent and welded from high quality steel or stainless steel.

From simple to complex geometries, we realize pipelines for every installation situation with our modern manufacturing capabilities. NovaNox® exhaust gas pipes are therefore always individually adapted to the installation possibilities. In this way, even particularly tight installation spaces are used effectively. With various surface treatments and pipe end finishes, we also supply ready-to-install piping.

Individual piping exhaust gas from NovaNox®.

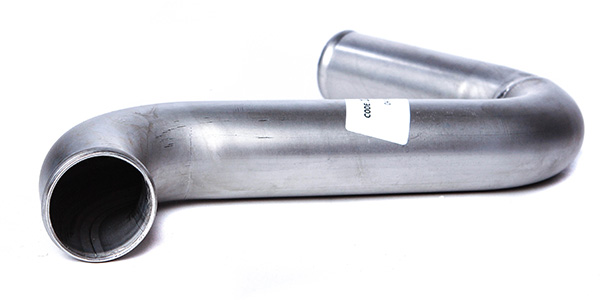

Exhaust gas piping bent

In order to bring the exhaust pipes into shape, we at NovaNox® use various bending processes and techniques. For example, mandrel bending and roll bending are combined to form pipes several times. Forming is possible by these methods even if the tubes have already been formed before. In mandrel bending, the tubes are pushed onto a mandrel and bent around the tool at a specified radius. To prevent the tube from deviating, it is stabilized with clamping jaws and slide rails. In roll bending, on the other hand, the deformation is brought about by adjustable rollers in which the tube is clamped. Due to this practice, the process is also called rolling, tube rolling or profile rolling. With this process it is possible to produce much tighter bending radii. All of these processes are performed on "cold" tubes.

"Cold" tubes or "cold bending" means that the tubes have been cooled down after the manufacturing process and are then deformed. Forming in a cold state allows a much wider range of tube and profile processing. In addition, several transition bends can be made on a single tube. Furthermore, another advantage is that the process is significantly cheaper and faster to implement. The only drawback is the limitation of machining from a diameter of 2 meters. Above this diameter, the pipes have to be machined in the blast furnace.

Of course, the materials are subjected to careful testing. This guarantees the quality of our products and 100% traceability.

Exhaust gas piping bent

NovaNox® piping exhaust gas welded

The welding process is an extremely important process in tube processing. It enables both simple and highly complex geometries. We use the MIG, MAG and TIG processes for welding. These processes enable watertight welds and arc welds. In any of the mentioned processes NovaNox® guarantees the use of qualified welders.

Other processes we undertake are laser cutting, milling, turning, riveting, grinding, and subsequent final assembly.

NovaNox® piping exhaust gas welded

CNC control

The CNC control enables us to perform our various bending techniques and produce CNC bent parts. These include, for example, ellipses, stab bends, tail bends or 3D bent parts with changing radii and extremely precise transitions between bends and straight lines. With our CNC tube bending machine, we can guarantee high quality standards. This is especially important for products that have to be manufactured in series. The machine offers high repeatability for all bends. During the bending process, the achieved radius is also continuously checked, thus avoiding errors or deviations.

CNC control

Your advantages

NovaNox® double-walled exhaust pipes are characterized by their extremely stable and vibration-resistant insulation. This ensures extreme heat resistance and permanent thermal insulation. This provides optimum protection for nearby sensitive components. What's more, thanks to custom manufacturing, an exhaust gas pipe can be made to suit any geometry. It can also be adapted to existing building site situations and thus be inserted without any problems at the end. Furthermore, it is waterproof and resistant to fuel, oil, urea and acid.

Your advantages


Even in the early development phases, we use FEM calculations to determine the structural strength, fatigue strength and material efficiency of your concept, among other things. These calculations keep you on the safe side during the test phases and also after your customer has put your product into operation.

We digitally visualize the consequences of different mechanical, thermal and electrical loads with the help of linear and non-linear structural-mechanical calculations. The advantage of this is that even before the prototypes are manufactured, the effects of various influences on the entire product or component can be examined. This concept is feasible for both simple and complex geometries.

The results of the performed calculations additionally serve you as evidence for technical approvals, for product liability and production releases. The FEM calculations are of course performed analytically according to general and international standards. Thus we guarantee reliable and comparable results. We perform the following analyses and calculations for you:

  • Linear and non-linear structural mechanics calculations
  • Analysis of deformations, stiffnesses and stability
  • Consideration of natural vibrations
  • Transient structural analysis
  • Collision analyses
  • Temperature field calculation (thermal-stationary or thermal-transient)
  • CAE-supported fatigue analysis with nCode

During design creation, you will receive technical drawings in 2D (in dxf, dwg and pdf formats) and 3D (in step format) from us. We also produce individual part drawings, assembly drawings, general drawings or assembly drawings as required. In addition, we provide you with detailed technical documentation for review, giving you the opportunity to make adjustments or express special requests or concerns before production begins. This step ensures that all manufacturing processes are carried out according to your wishes.

It also gives you the assurance that everything will fit perfectly and be implemented error-free. With this multitude of technical drawings and the comprehensive documentation, you can be sure of precise communication throughout your entire development and manufacturing process chain. This covers the different information needs of each stage.

We work closely with you on the topics of development, planning and design of the construction, the material and the manufacturing process in order to meet the demands on ourselves to achieve a result as close to series production as possible already in the prototype phase. This ensures optimal results and keeps your time and cost planning on track.

We analyze the results of the FAI and optimize the manufacturing process to achieve the highest possible efficiency and cost-effectiveness. To protect your project budget, we help to significantly shorten the time-to-market and start series production on schedule.

As a tier-1 supplier, we take over the complete process for you, from demand planning to logistical handling. To ensure uninterrupted production processes, we provide you with a total of 1,200 m² of storage space as a consignment warehouse. On the one hand, this saves you costs compared to your own storage capacities. On the other hand, it enables you to produce more cost-effectively in larger batch sizes.

Your optimum component supply for series production is thus ensured. You can call off your NovaNox® piping waste gas on schedule and also flexibly. Your existing logistics processes are, of course, fully integrated. These measures enable us to offer you a secure supply of components throughout the year.


System supplier NovaNox

Get to know your personal contact now.

Stock item
Industries served
Successful projects
Serial products

NovaNox® is a system supplier for manufacturers of machines, plants and vehicle technology. We specialize in hose technology, pipe technology, insulation technology, exhaust gas technology, tank technology and exhaust gas piping. From development and prototype production to series production.
